英特爾Q45 Micro-ATX主機板

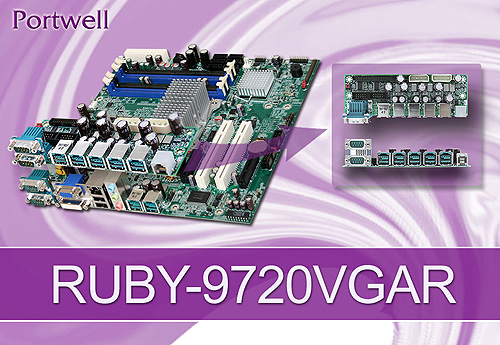

工業電腦的創新領導者瑞傳科技，率先推出新款英特爾工業用主機板RUBY-9720VGAR。RUBY-9720VGAR (Micro-ATX平台) 採用英特爾最新Q45 PCI-Express高速晶片組，可支援英特爾45奈米製程Core™ 2 Duo和Core™ 2 Quad處理器，最高可支援至Core™ 2 Quad四核心處理器Q9400。RUBY-9720VGAR主機板提供多樣化應用於端點銷售系統(POS)、自動櫃員機(ATM)、互動式多媒體資訊站(Kiosk)、遊戲機(Gaming)、數位監控系統(DSS)及數位電子看板(DS)。 RUBY-9720VGAR採用英特爾最新Q45 PCI-Express晶片組，支援各式顯示介面及各種多媒體裝置；豐富的IO介面提供Power USB、Power COM等裝置使用，符合客戶之需求。藉由VGA、DVI等內建顯示介面可達到雙螢幕獨立顯示功能，使用者亦可額外購買瑞傳ADD2卡(VGA輸出)或PCI Express圖形介面卡(PCI Express X 1 或 PCI Express X 4)來擴充第三個螢幕以提供更寬廣的產品應用。 “身為一個創新及廣大應用的工業電腦製造商，我們瞭解工業電腦市場總是需要各式各樣化的設計以符合其特殊應用” 瑞傳科技業務副總黃建昌先生表示。“在現行市場普遍設計下Micro-ATX平台皆無法滿足資訊內容的保護，甚而保障運作過程中的安全性。瑞傳科技採用英特爾主動式管理技術(Intel® Active Management Technology, Intel® AMT 5.0)及英特爾可信賴平台晶片組(InIntel® Trusted Platform Module, Intel® TPM 1.2)來確保客戶使用的安全性；此外英特爾Q45 PCI-Express高速晶片組支援Microsoft DirectX 10，同時改善繪圖效能及多個顯示界面。RUBY-9720VGAR以最新英特爾平台為基礎，為各樣化的需求提供最佳解決方案。” “英特爾Q45 PCI-Express高速晶片組提供系統最新圖形控制Intel® Integrated Graphics Media Accelerator 4500” 英特爾行銷部門主管Ryan Parker表示。“在Q45 PCI-Express高速晶片組結合四核心處理器之設計概念下，瑞傳科技最新款Micro-ATX主機板RUBY-9720VGAR可滿足工業電腦上高效能及圖形控制的各式各樣化應用”。 除了上述多種優勢之外，RUBY-9720VGAR支援DDR2 800/677 Mhz兩種規格，並提供四組插槽供記憶體使用，最高可擴充至16 GB；其所支援的雙通道技術更能發揮記憶體之最大效能。為滿足多樣化的應用，RUBY-9720VGAR更具備了VGA及DVI二種顯示介面、六組SATA介面、二組12V Power COM埠和二組5V/12V Power COM埠、四組USB埠和二組12V Power USB埠；主要插槽支援一組ADD2插槽、一組PCI Express X 4插槽、二組PCI插槽。若客戶需求更多Power COM埠和Power USB埠，可再搭配一組擴充板，內含Portwell, Inc., a worldwide leading innovator in the Industrial PC (IPC) field has developed a new motherboard with the latest Intel® platform for embedded. The Portwell RUBY-9720 (Micro-ATX form factor), built with the 45nm Intel® Core™ 2 Quad processor Q9400 and Intel® Q45 Express chipset, can provide the ideal solution for multiple applications such as POS, ATM, Kiosk, Gaming and Digital Signage. Based on the new Intel solution for embedded, the RUBY-9720 is specifically designed to support enriched display interfaces that can support various multimedia devices and enriched IO interfaces that can supply various Power USB, Power COM devices. The dual display can be implemented by VGA, DVDVDVI, LVDS connectors. The third display can easily be done via ADD2 and PCI-Express x4 expansion graphic card. "As an innovator and wide-range platforms provider, we realize such industrial market always requires diversity applications to display their distinctive creations" says Edgar Chang, president of Portwell, Inc. "The existing solution in the market can’t be assured how to protect the private content and the security during operation. Solutions built in Intel® Active Management TechnolBesides multiple displays, the RUBY-9720 provides four 240 pins DIMMs which can support dual channel DDR2 up to 16GB. In addition, it comes with six SATA, three 5V/12V selectable powered RS-232 port, one RS232/422/485 port, two RS232 ports separately on multiple IO board, high definition audio codec, two standard USB ports, two 12V powered USB ports, extra five 12V USB ports on multiple IO board one DVI port, one ADD2 slot and one PCI-Express x4 slot.
